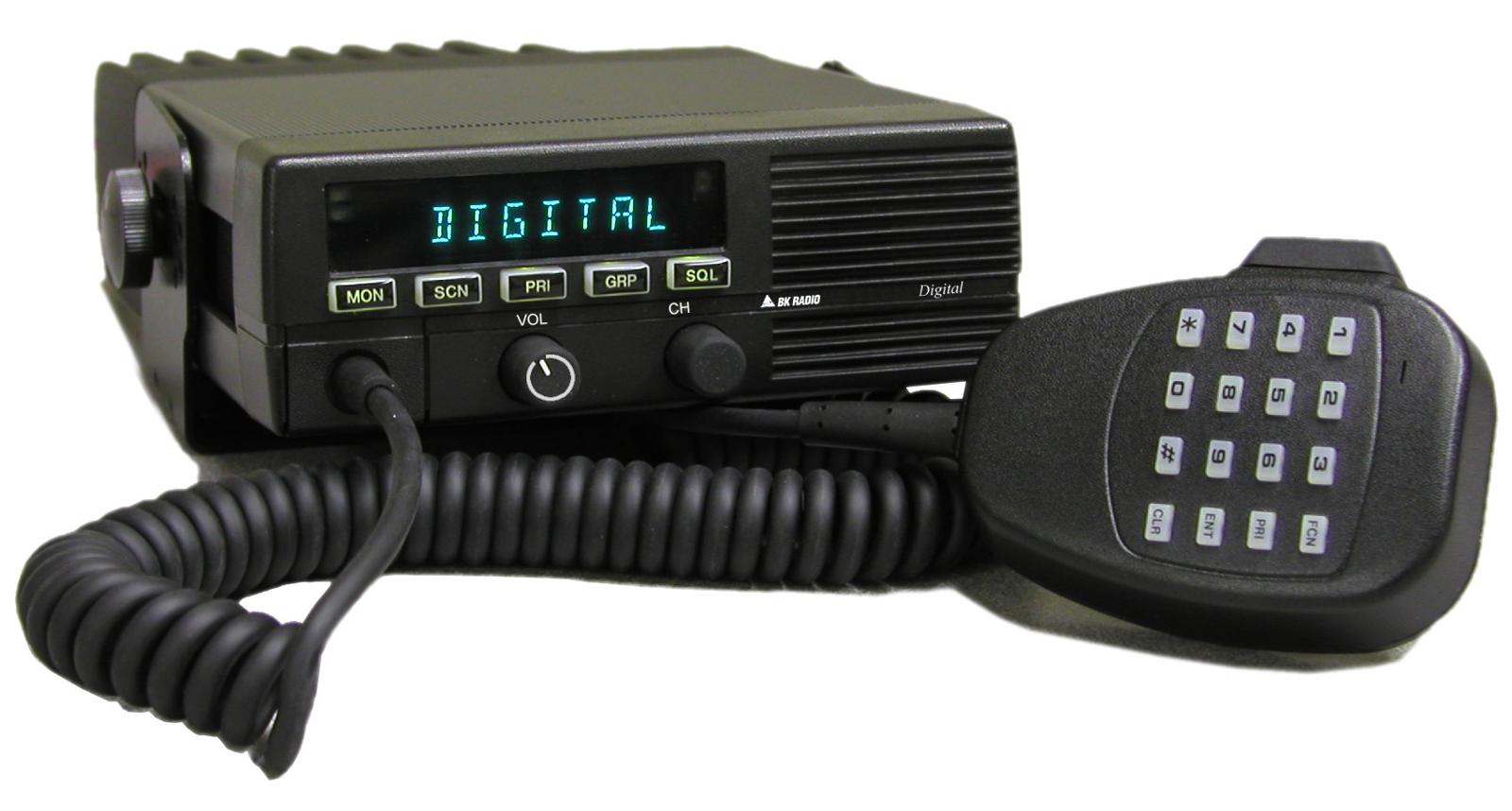

DMH5992X VHF 50 Watt P-25 Digital Mobile

Equipment details

This radio has been discontinued, and is no longer available. Owners Manual DMH MOBILE FEATURES APCO Project 25 136 – 174 MHz VHF 400 channels, 500 user groups, 16 channels per group Superior audio quality and clarity 15 – 50 watts progammable RF power DES/AES encryption options Digital, analog, and mixed-mode operations on each channel plus Automatic Mode Detection Cloning technology transfers information from one radio to another automatically FLASH technology enables future enhancements without hardware changes, instead adding software capabilities quickly and easily Ultra-secure multi-level password programming protection User-Selectable Code Guards User Selectable Network Access Codes High Visibility VFD Display Dual Priority Scan Talkback Scan Nuisance Channel Delete Transmit Time-Out-Timer Soft Switch Programming Tone Code Guard (CTCSS) Digital Code Guard (CDCSS) Network Access Codes DTMF Encode DTMF ANI Talk Group IDs Streamlined Unit-to-Unit Call-Back Emergency Transmission Mode       SPECS DMH5992XP VHF Channels 400 Operating Voltage 13.8V Operating Temperature -30 to +60°C Current Drain 0.5A Standby 1.0A RX 14.0A TX Stability +/- 2.5 PPM Channel Increments 5.0/6.25/7.5 kHz Frequency Range 136 – 174 MHz VHF Channel Spacing 25/30 and 12.5/15 kHz Size (W x D x H in.) 6 x 9.38 x 2.12 in. Weight 5 lbs. Antenna 50 Ohm UHF/Mini UHF Available FCC ID K95DMH599 RECEIVER Sensitivity: 12db SINAD/5% BER -118 dBm Selectivity 75 dB (wide) / 70 dB (narrow) Spurious including Image 80 dB Intermodulation 75 dB Audio Output @ 5% Distortion 5 W Internal 10 W External Audio Load 8 Ohms External TRANSMITTER RF Power Output 15 to 50 Watts Spurious and Harmonics 80 dB Hum and Noise 50 dB Audio Distortion 3 % Modulation 16K0F3E, 11K0F3E, 8K10F1D, 8K10F1E
